About CHIRIMEN Boot Animation / CHIRIMEN のブートアニメーションについて
Index / 目次
- a Trigger / きっかけ
- connect an Echigo rev.1 / Echigo rev.1 との接続
- get a animation file / アニメーションファイルの取得
- The contents of animation file / アニメーションファイルの中身
- The Future / 今後
a Trigger / きっかけ
with replace boot logo(Tux) and recovery background(Android robot) with CHIRIMEN logo #114 in issue in CHIRIMEN Open Hardware, and I was interested, so it was checked.CHIRIMEN Open Hardware の issue で、replace boot logo(Tux) and recovery background(Android robot) with CHIRIMEN logo #114 がポストされていて、興味があったので調べてみました
Android端末起動時のアニメーション(boot animation)を変更する方法!
there is files in animation information.
bootanimation.zip というファイルにアニメーション情報があるようです。
it seem able to get a file as bootanimation.zip from Echigo rev.1.
Echigo rev.1 から bootanimation.zip というファイルを取得出来るようです。
place is /system/media.
格納場所は、/system/media です。
connect an Echigo rev.1 / Echigo rev.1 との接続

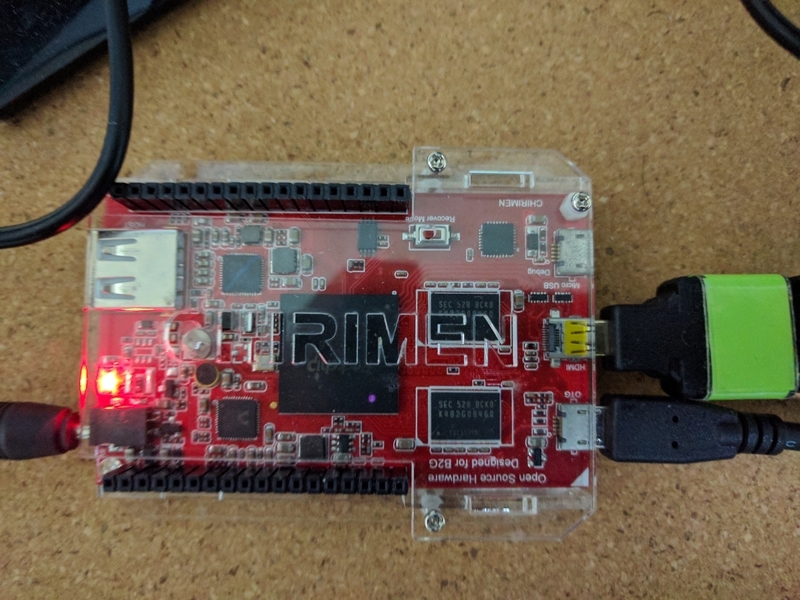

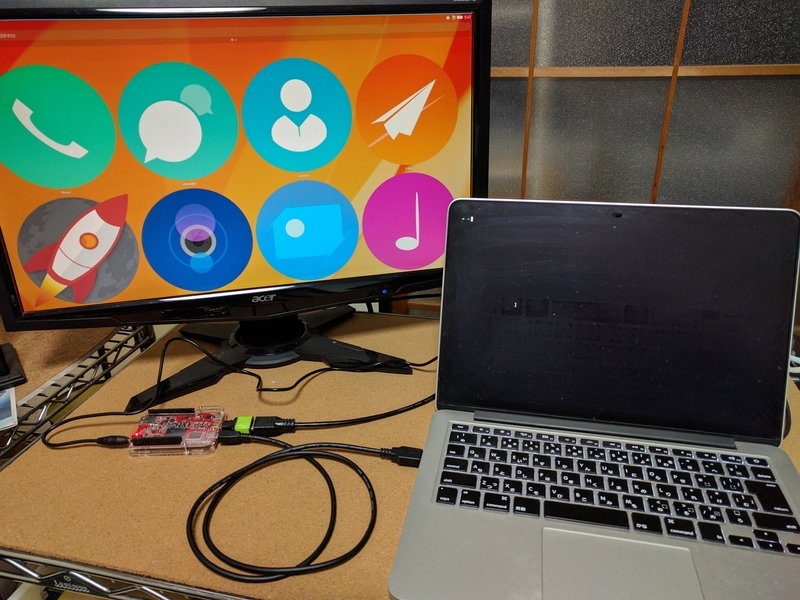

at first, CHIRIMEN Board Echigo rev.1 has connected at PC.まず最初に CHIRIMEN ボード Echigo rev.1 を PC に繋ぎます。
get a animation file / アニメーションファイルの取得
next, open a terminal, typing command,excute command.次にターミナルを開き、コマンドを入力,実行します。
➜ ~ mkdir work/boot-animation
➜ ~ cd work/boot-animation
➜ boot-animation adb kill-server
➜ boot-animation adb root
* daemon not running. starting it now on port 5037 *
* daemon started successfully *
adbd is already running as root
➜ boot-animation adb pull /system/media/bootanimation.zip bootanimation.zip
[100%] /system/media/bootanimation.zip
➜ boot-animation

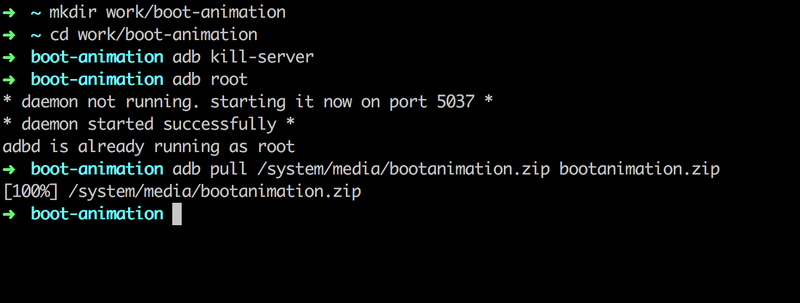

following excute images / 実際の実行図The contents of animation file / アニメーションファイルの中身
The animation files got actually is this.(zip file is already defrosted.)実際に取得した画像がこちらです。(zip file 解凍済み)

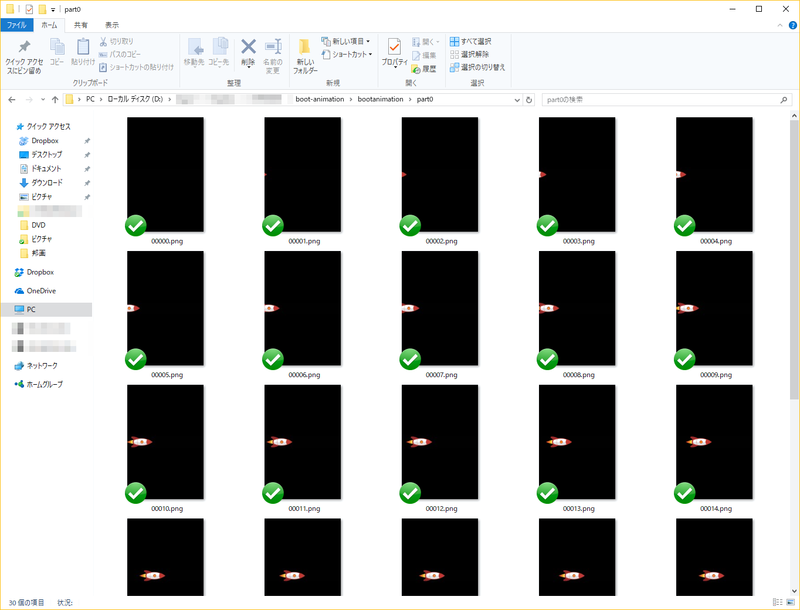

folder:part0

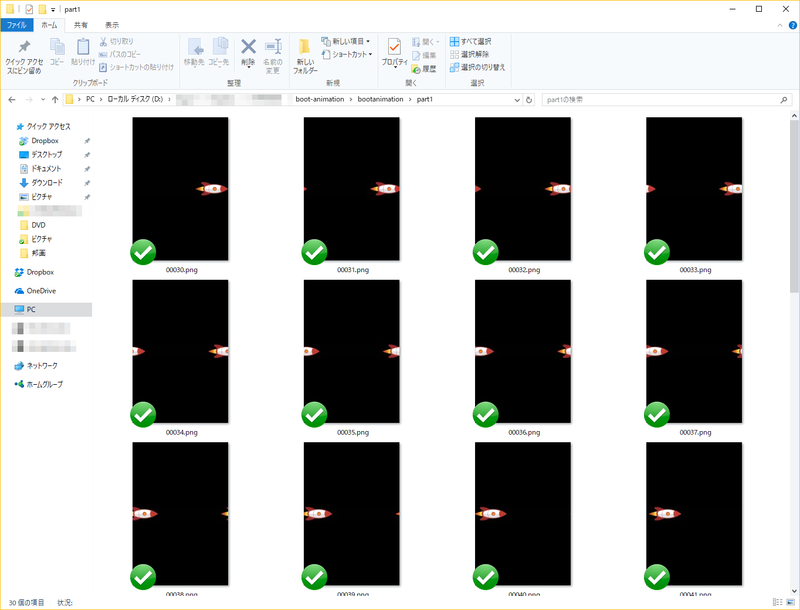

folder:part1
The Future / 今後
the future, I'll argue a CHIRIMEN Boot animation by a CHIRIMEN Open Hardware Community and look for.今後、ブートアニメーションを CHIRIMEN Open Hardware コミュニティで議論・募集をしていきます。
and more, A method change in the image file is checked.
そして、イメージファイルの変更のやり方を調べます。
I'm waiting for your advice.
皆様のアドバイスお待ちしております。
