Remote Connect of Echigo Rev.1 / Echigo Rev.1 のリモート接続
Index / 目次
I was learned that Remote Connect of Echigo Rev.1 at CHIRIMEN Open Hardware Community.
I jsut do it.
this steps is makes in mac.
CHIRIMENOpen Hardware コミュニティでリモート接続の手順を教わったのでやってみた。
この手順は、mac でやっています。
- android vnc server setteing / android vnc server 設定
- VNC Operation / VNC 操作
- Conclusion / 結論
- Addtion /おまけ
android VNC was downloaded.
android VNCをダウンロードします。
https://goo.gl/2jxVAg
A zip file is defrosted, file is putted on desktop.
zipを解凍して、androidvncserverをデスクトップに置きます
ターミナルを立ち上げ、下記コマンドを打ちます
android VNCをダウンロードします。
https://goo.gl/2jxVAg
A zip file is defrosted, file is putted on desktop.
zipを解凍して、androidvncserverをデスクトップに置きます
ターミナルを立ち上げ、下記コマンドを打ちます
# adb kill-server
# adb root
# adb remount
# adb push Desktop/androidvncserver /system/bin
# adb shell
> chmod 755 /system/bin/androidvncserver
> exit
-----these steps first Preparations. / ここまで初回のみの準備。 ------
VNC operation is performed. / VNC操作を行います。
terminal was opened. / ターミナルを開きます。
command was typing & excute / コマンドを入力、実行します。
command was typing & excute / コマンドを入力、実行します。
macのFinderのメニュー [移動] > [サーバーへ接続] と開き
input server address : vnc://localhost:5901
サーバーアドレスを入力します:vnc://localhost:5901
input passwor is [password] / パスワードに [password]と入力します。
if server connect was succeed, follow
ing images / 接続が成功すると下図のようになります。
command was typing & excute / コマンドを入力、実行します。
# adb shell
> /system/bin/androidvncserver -p password
one more terminal was opened. / もう一つターミナルを開きます。command was typing & excute / コマンドを入力、実行します。
# adb forward tcp:5901 tcp:5901

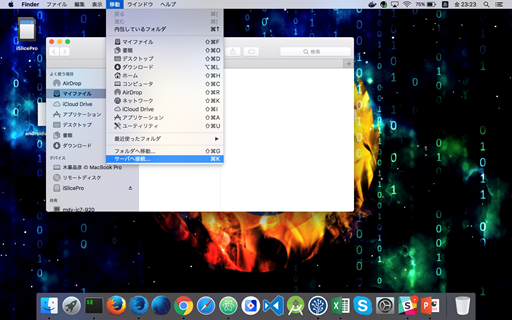

Finder was opened, menu [move] > [server]macのFinderのメニュー [移動] > [サーバーへ接続] と開き
input server address : vnc://localhost:5901
サーバーアドレスを入力します:vnc://localhost:5901

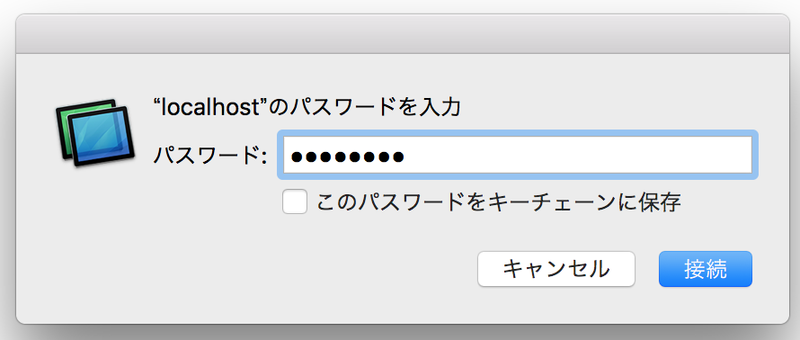

input passwor is [password] / パスワードに [password]と入力します。

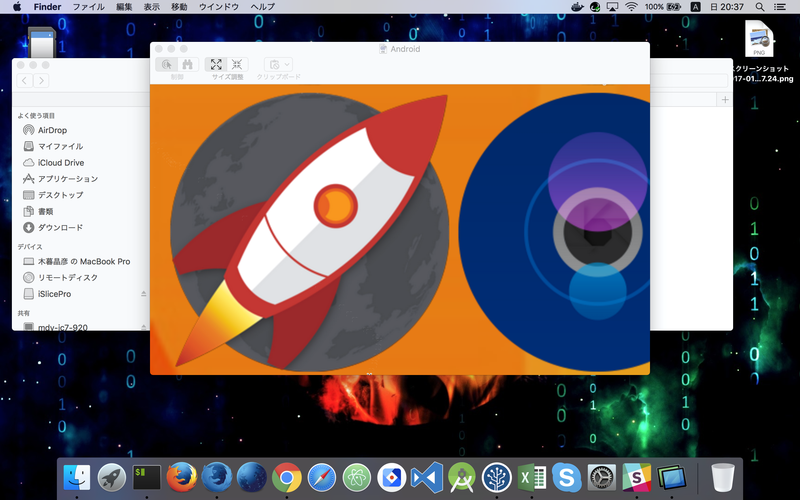

if server connect was succeed, follow
ing images / 接続が成功すると下図のようになります。
Conclusion / 結論
- It's late / heavy to use it daily.
- 日常的に使うには遅い/重い
もしディスプレイやマウス無しで、設定を行いたい時に試してみて下さい。
Addtion /おまけ
- It can also used for Open Web Board.
- Fx0 and Flame can’t use it.
- Open Web Board にも使えます。
- Fx0 や Flame では、使えません。
